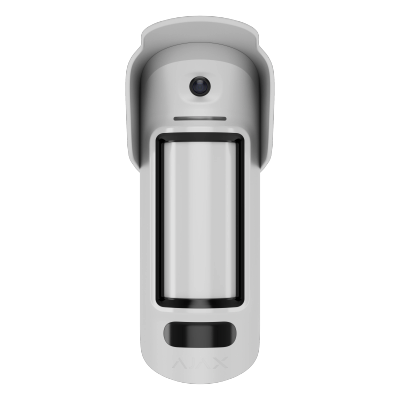

Ajax MotionCam Outdoor (PhOD) Jeweller

---

The Outdoor MotionCam is a wireless outdoor motion detector with a built-in camera that helps verify alarm events. When motion is detected, it captures a series of images so you can quickly see what caused the alarm. With Photo on Demand, you can also request images anytime from the Ajax app.

The Outdoor MotionCam is designed to protect outdoor areas before someone reaches your building. It's commonly installed around construction sites, equipment yards, gates, building exteriors, parking lots, and other outdoor areas where early detection and visual verification are important.

• Photo on Demand – Request images from the detector anytime using the Ajax app.
• Images When You Need Them – Receive photos during alarms, on demand, by schedule, or during system arming and disarming, depending on how your system is configured.
• Visual Verification – Know what caused an alarm before deciding how to respond.
• Fast Photo Delivery – The first image is typically delivered in about 9 seconds.
• Detects Motion Up to 49 Feet– Helps detect activity before someone reaches your building.
• Camera Sees Beyond the Detection Range – While motion detection extends up to 49 feet, the camera can often see much farther depending on available lighting.
• Helps Reduce False Alarms – Dual detection technology, adjustable sensitivity, and SmartDetect help reduce unwanted alarms from common outdoor movement.
• Built for the Outdoors – Weather-resistant design for year-round outdoor protection.
• Privacy Protected – Images are only captured when requested by an authorized user or during authorized alarm events.
• Long Battery Life – Typically up to 3 years of battery life under normal operation.

The detector and the camera are two different things.

The motion detector is designed to detect people up to approximately 49 feet away. The camera isn't limited to that distance—it can often see much farther depending on available lighting and what's within its field of view.

Motion Detection

• Detection range: up to 49 ft
• Detection angles: 90° vertical / 90° horizontal
• Dual PIR sensors
• One microwave sensor
• Anti-masking protection

Photo Verification

• Up to 640 × 480 image resolution
• 1–5 images per event
• First image delivery: approximately 9 seconds
• HDR image enhancement
• Infrared illumination for low-light conditions
• Regular camera health checks

Communication

• Wireless communication range: up to 5,550 ft (1,700 m) in open air
• Encrypted wireless communication

Power

• Six pre-installed CR123A batteries
• Typical battery life: up to 3 years
• Optional 12–24V external power connection available

Installation

• Outdoor installation
• Recommended mounting height: 6.6–13 ft
• Operating temperature: 13°F to 140°F
• Protection rating: IP55

Security Features

• Anti-masking
• Tamper alarm
• Magnetometer
• Device authentication
