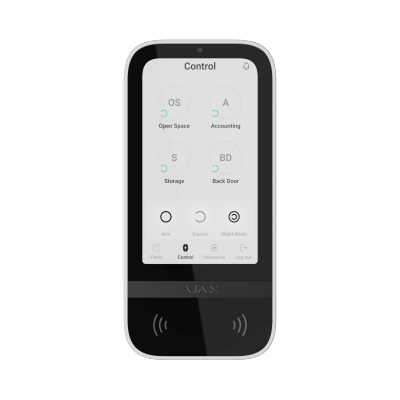

Ajax KeyPad TouchScreen

---

The Touchscreen Keypad gives you another convenient way to control your Ajax security system. In addition to the mobile app, you can arm and disarm your system, view its current status, and receive important system notifications right from the keypad's display. The touchscreen interface is intuitive, easy to use, and designed for everyday convenience.

The Touchscreen Keypad is typically installed near the main entrance, providing a convenient way to arm and disarm the system without using the mobile app. It's ideal for locations where multiple people need access to the security system.

• Easy to Use – Large touchscreen display makes everyday operation simple.
• Flexible Access – Arm and disarm the system using a PIN code, Pass card, Tag key fob, or compatible smartphone.
• Shared Access Without Sharing Your Phone – Give family members, employees, cleaners, or temporary staff a convenient way to arm and disarm the system without giving them access to your mobile app.
• System Status at a Glance – View your system's current status and recent activity directly on the keypad.
• Smart Notifications – Displays system alerts and explains the cause of malfunctions when they occur.
• Automatic Backlit Display – Automatically adjusts screen brightness for comfortable viewing day or night.
• Emergency Buttons – Quick access to Panic, Fire, and Auxiliary emergency alerts.
• Long Battery Life – Up to 1.5 years under normal operation.

I recommend the Touchscreen Keypad whenever someone other than an authorized app user needs to arm and disarm the system. It's a great solution for family members who don't use the Ajax app, employees, cleaners, temporary staff, or anyone who needs simple access to the system without giving them control through the mobile app.

Authentication

• PIN codes
• Pass cards
• Tag key fobs
• Smartphone authentication (Bluetooth)

Display

• 5-inch IPS capacitive touchscreen
• 480 × 854 resolution
• Automatic brightness adjustment

Communication

• Jeweller & Wings wireless communication
• Up to 5,550 ft (1,700 m)communication range in open air

Power

• Six AA batteries (included)
• Up to 1.5 years battery life
• Optional external power input

Installation

• Indoor installation
• Operating temperature: 14°F to 104°F
• Available in black or white
