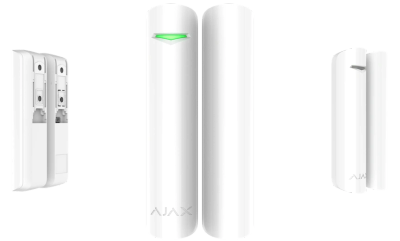

Ajax DoorProtect (Door & Window Contact)

---

The Door & Window Sensor is a wireless opening detector that alerts your system whenever a protected door or window is opened. It's one of the simplest and most effective ways to secure common entry points into a home or business.

Door & Window Sensors are commonly installed on entry doors and accessible windows to detect unauthorized opening. They're ideal for homes, businesses, offices, storage rooms, and other areas where monitoring an entry point is important.

• Protects Common Entry Points– Detects when a protected door or window is opened.
• Perfect for Stay/Night Mode– Protect your doors and windows while allowing you to move freely inside your home or business.
• Long Battery Life – Up to 7 years of battery life under normal operation.
• Reliable Detection – Magnetic reed switch rated for approximately 2 million openings.
• Wireless Installation – Battery-powered design with no wiring required.
• Flexible Installation – Includes both small and large magnets to accommodate a variety of door and window installations.
• Expandable – Supports connection of a third-party wired NC detector for specialized applications.

Detection

• Magnetic reed switch
• Rated for approximately 2 million openings
• Includes small and large magnets
• Supports one third-party NC wired detector

Communication

• Wireless communication range: up to 3,900 ft (1,200 m) in open air
• Encrypted wireless communication

Power

• One pre-installed CR123A battery
• Typical battery life: up to 7 years
• Low battery notification

Installation

• Indoor installation
• Operating temperature: 14°F to 104°F
• Protection rating: IP50

If your home or business has tilt-and-turn windows or requires additional vibration and tilt detection, I may recommend the Ajax DoorProtect Plus instead. During the design process, I'll recommend the device that's best suited for your specific application.
